Kousoku Recycler 2.0 Option CUSTOM REELSHEET
新商品NEW
Customizing the reel seat for the Kousoku Recycler 2.0.
Securely fixing the reel enables smooth and comfortable line winding!
Customizing the reel seat for the Kousoku Recycler 2.0.
Securely fixing the reel enables smooth and comfortable line winding!
*Scheduled for release in March 2025.

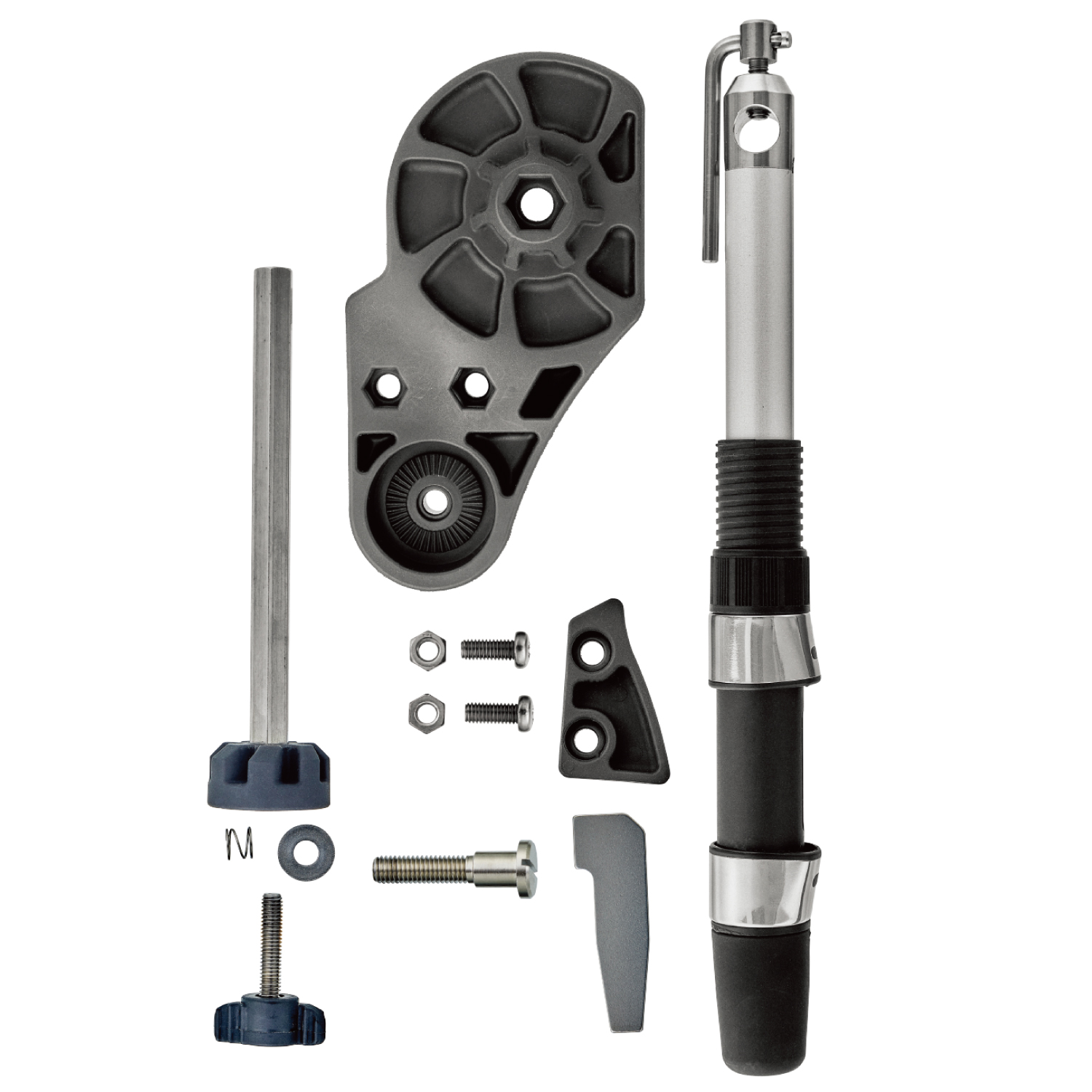

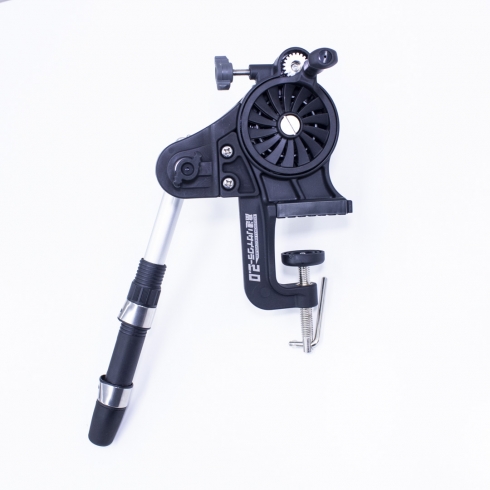

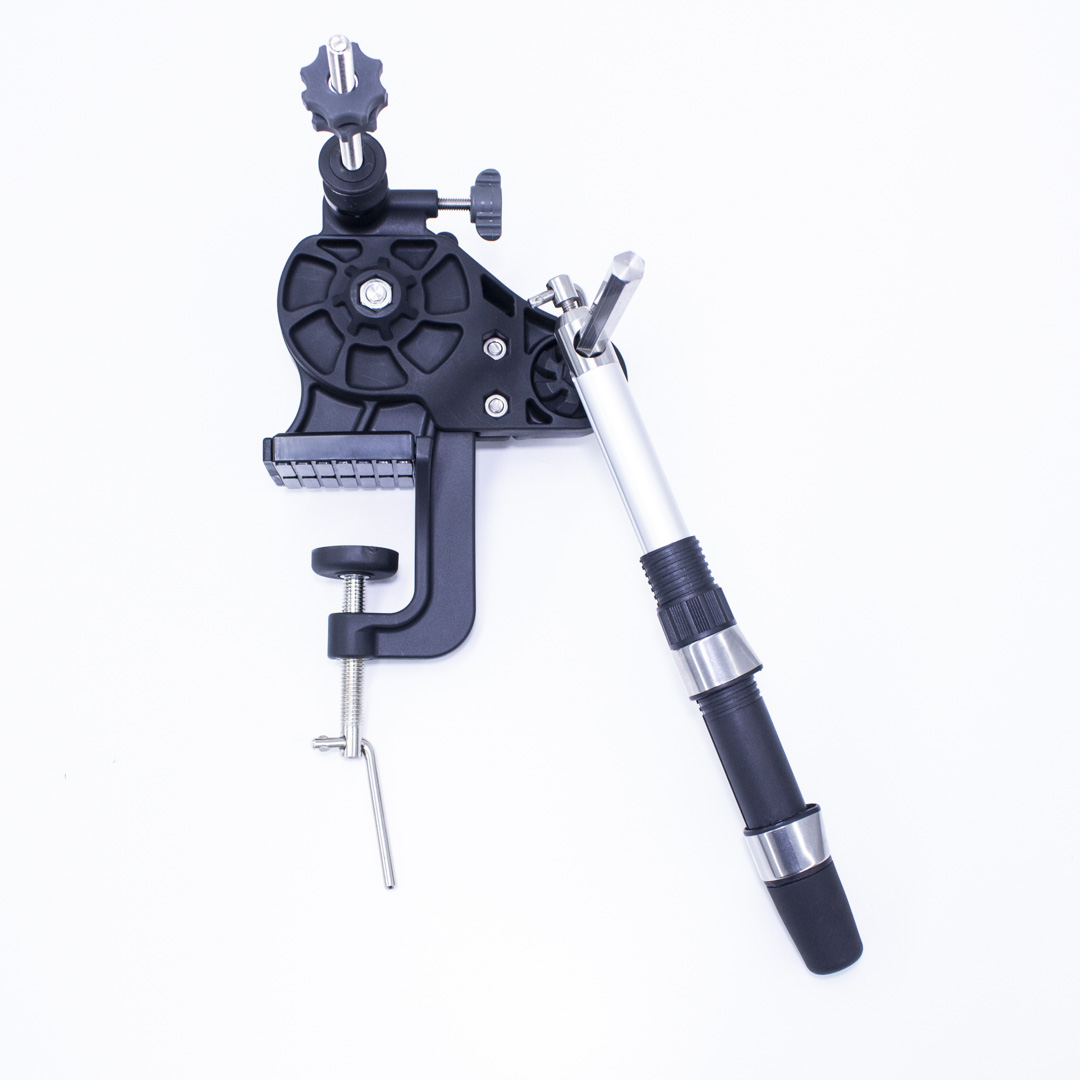

Appearance
SPEC
• Size (when stored): 306 mm × 166 mm × 143 mm
• Weight (excluding wrench): 419 g
• MADE IN JAPAN (some parts MADE IN CHINA)
*This product is a custom part specifically for the Kousoku Recycler 2.0.

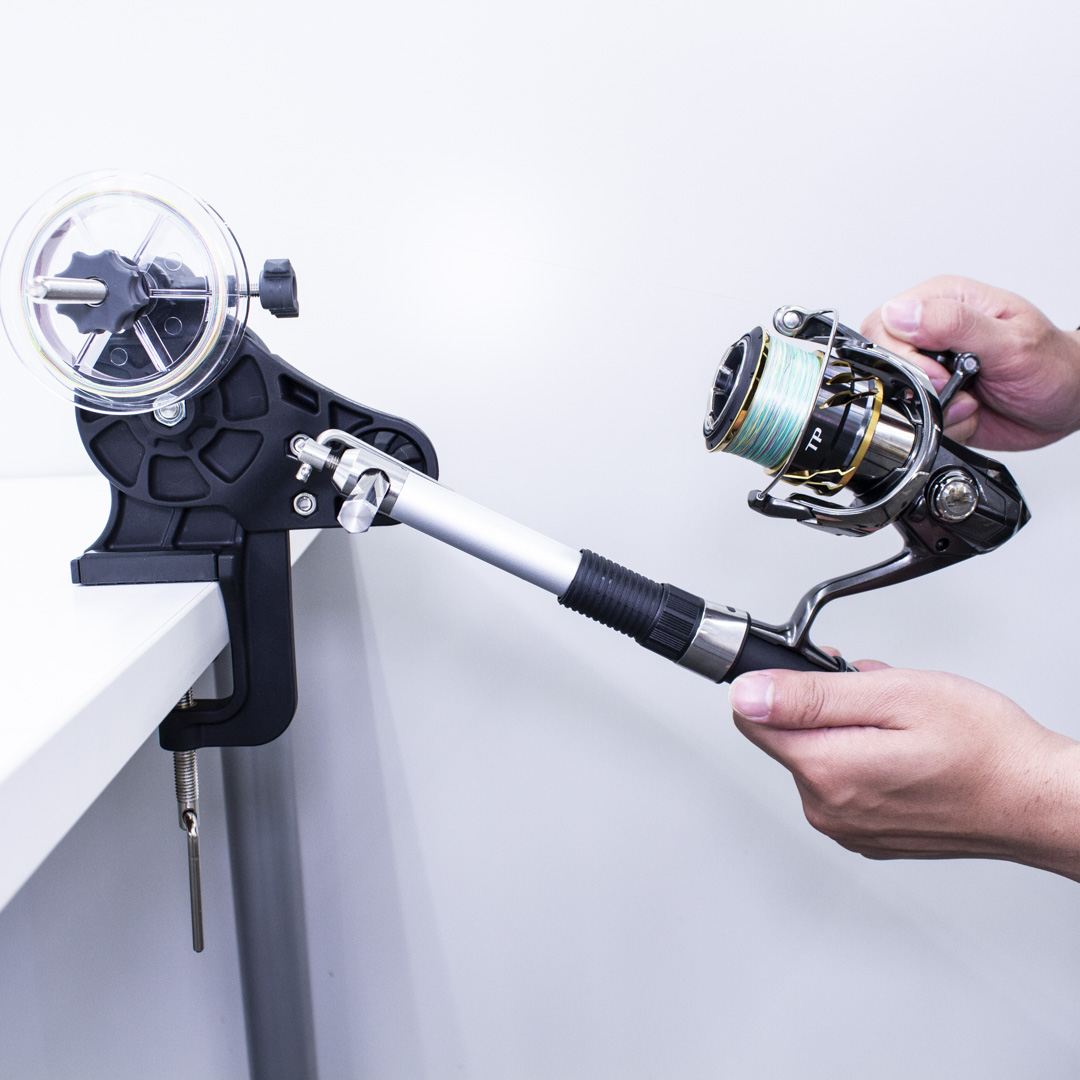

Feature 1

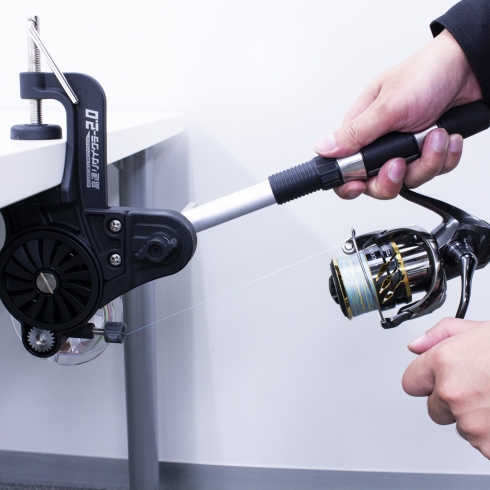

The reel is securely fixed, making winding and rewinding effortless!
Feature 2
Attach the custom reel seat to clamp the Kousoku Recycler 2.0 securely. The use of metal components in the reel seat ensures high rigidity.
Stable line winding is possible even under high tension.
Feature 3
The seat angle can be adjusted to match the reel size, reducing jerky handle movement.

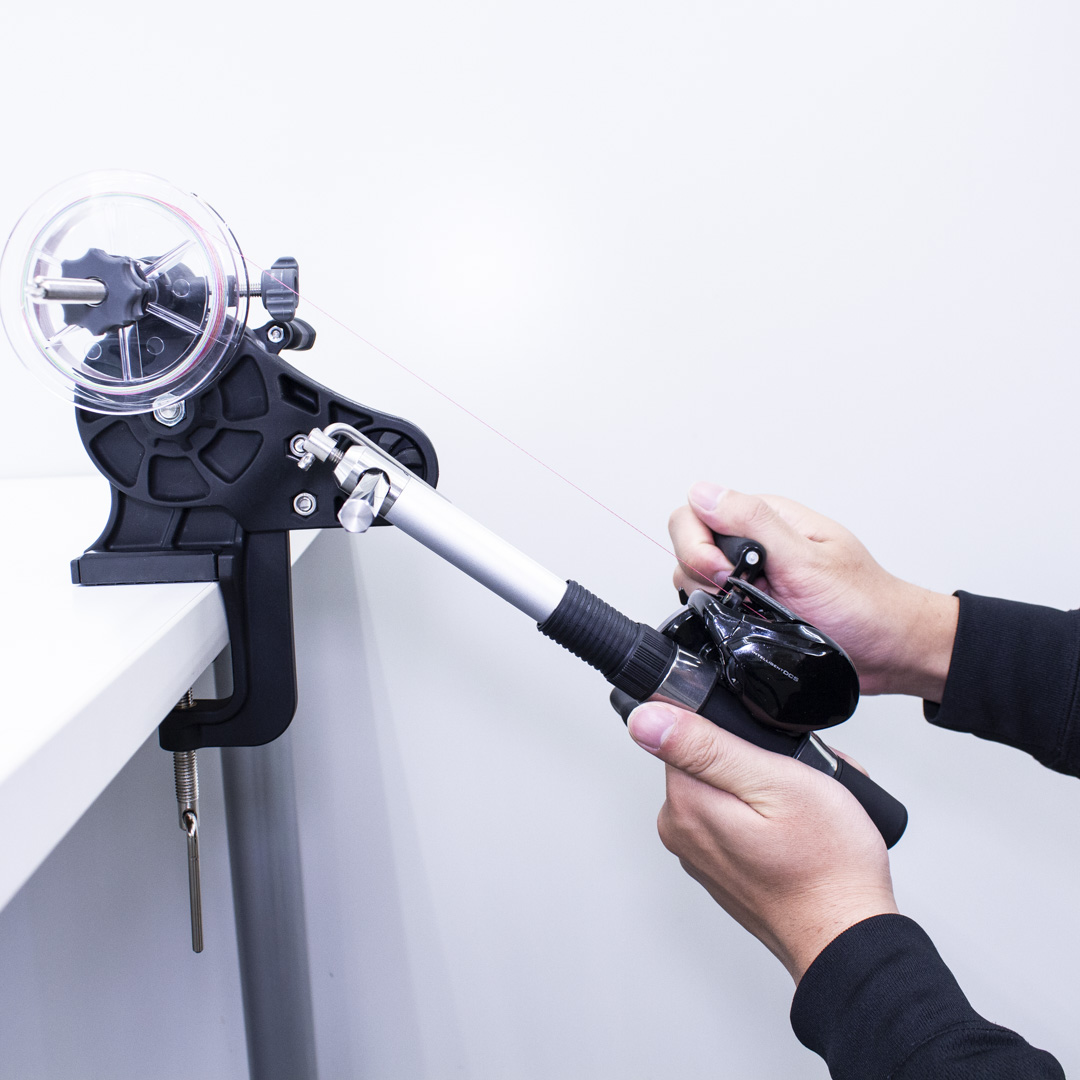

Usable with both spinning reels and baitcasting reels.
Feature 4
When using spinning reels, the Kousoku Recycler 2.0 can also be installed upside down.

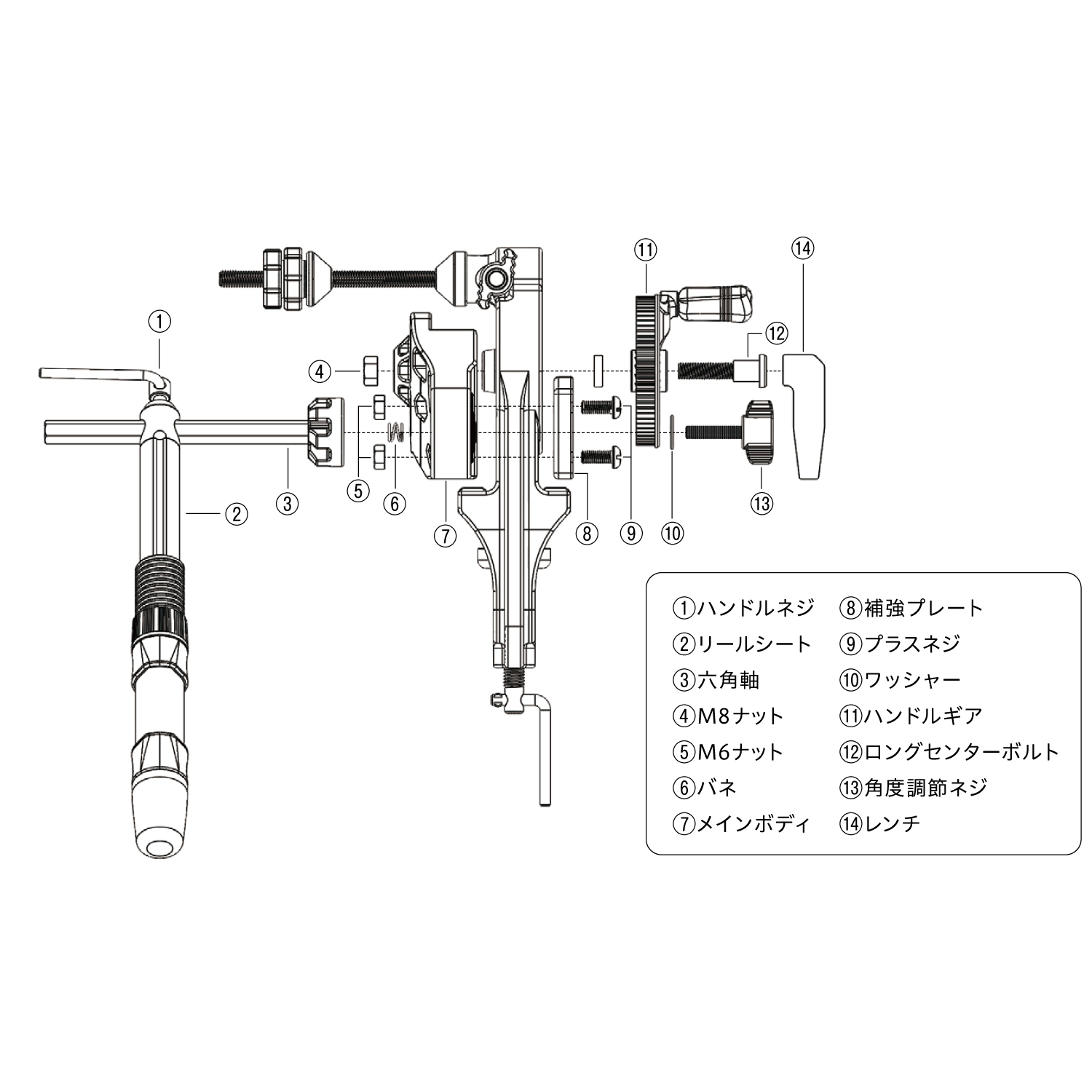

Assembly Instructions
How to assemble 1

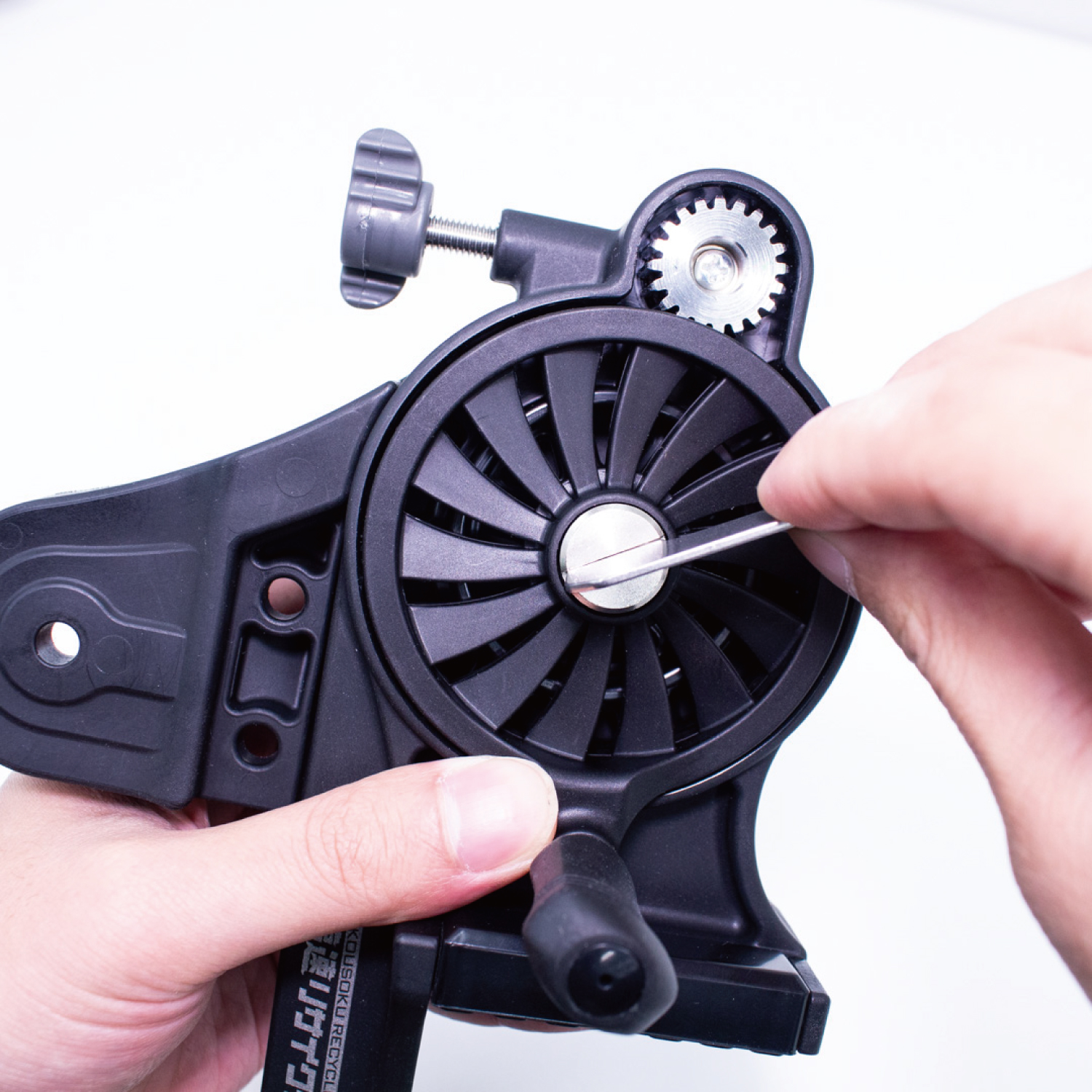

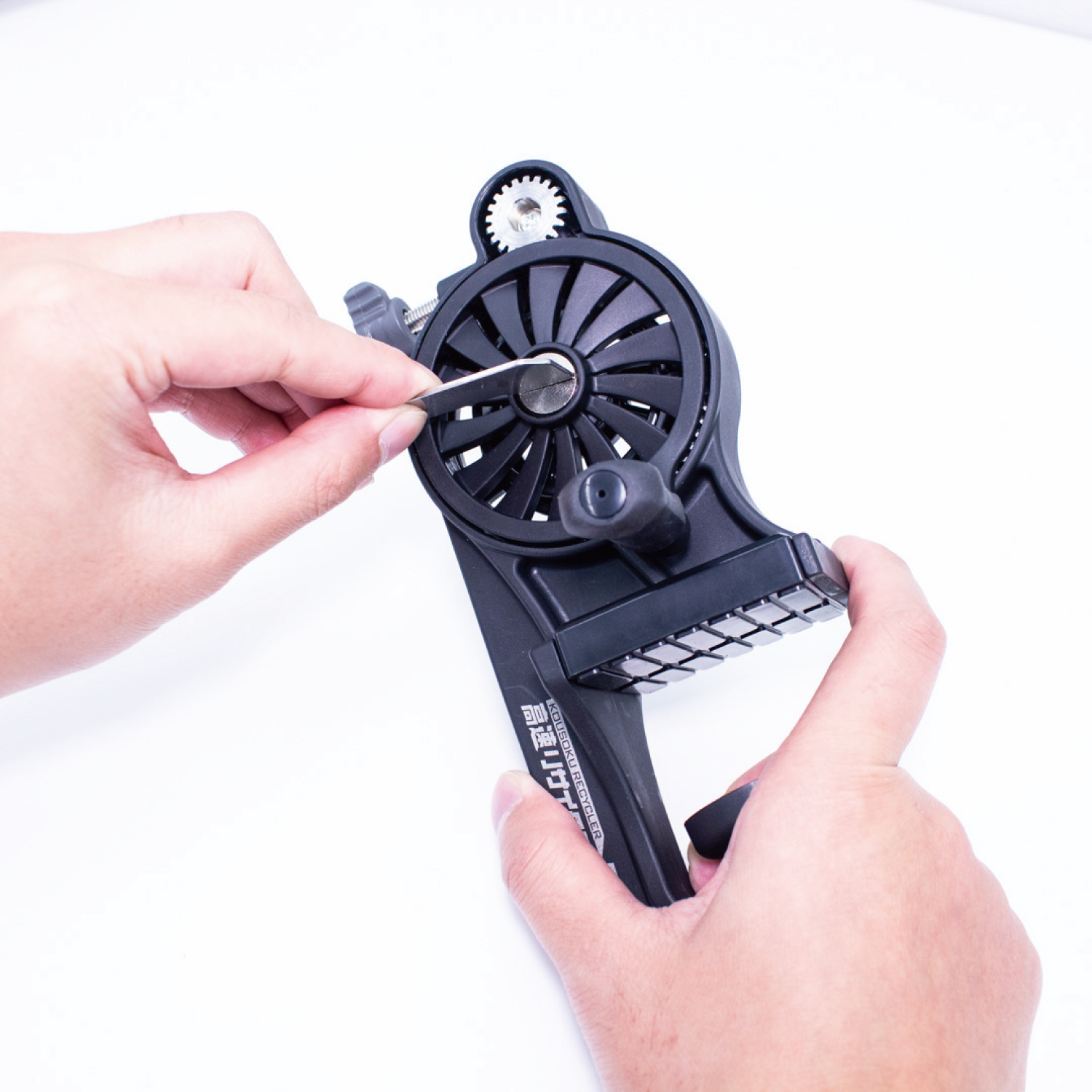

Use the provided wrench to remove the center bolt from the Kousoku Recycler 2.0.

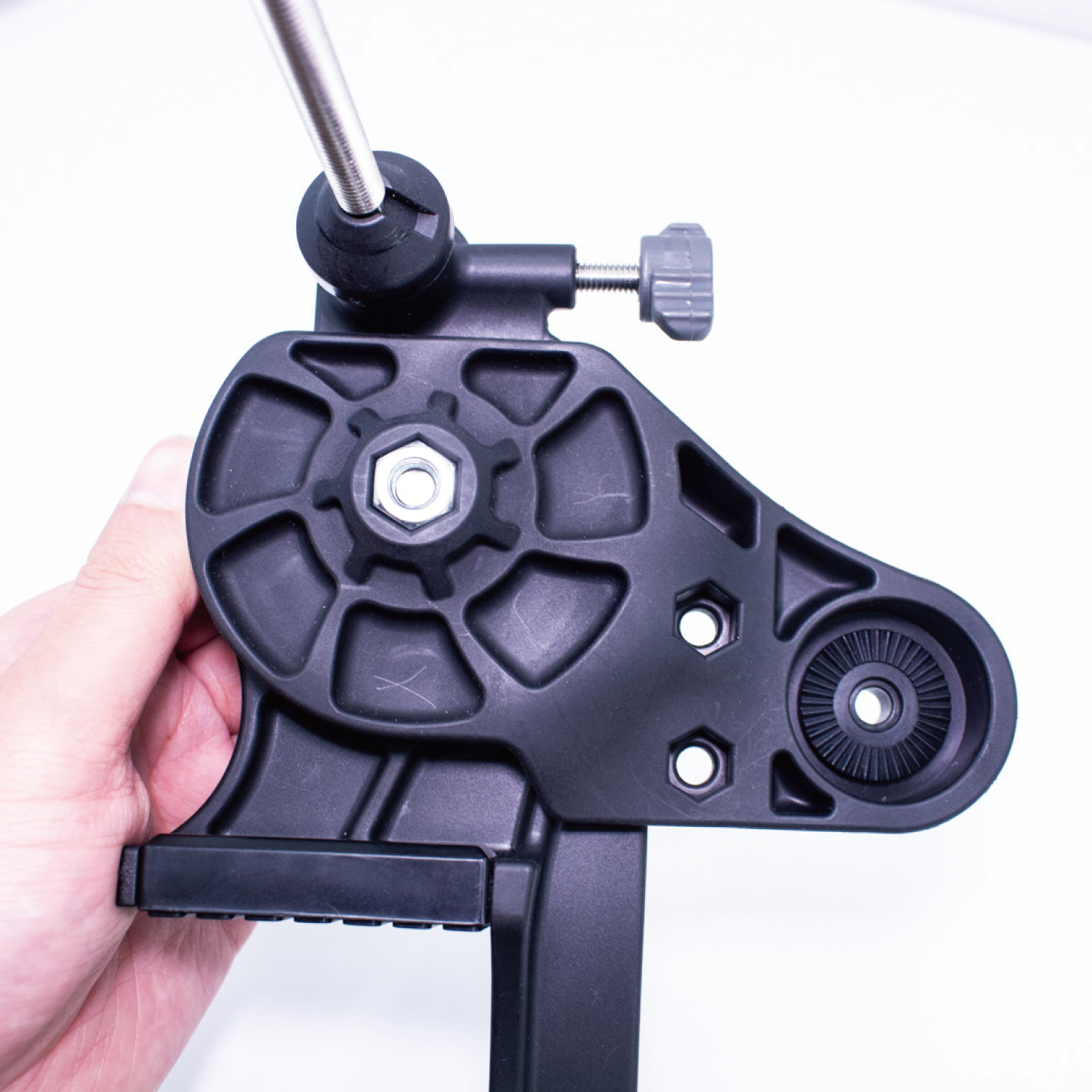

How to assemble 2

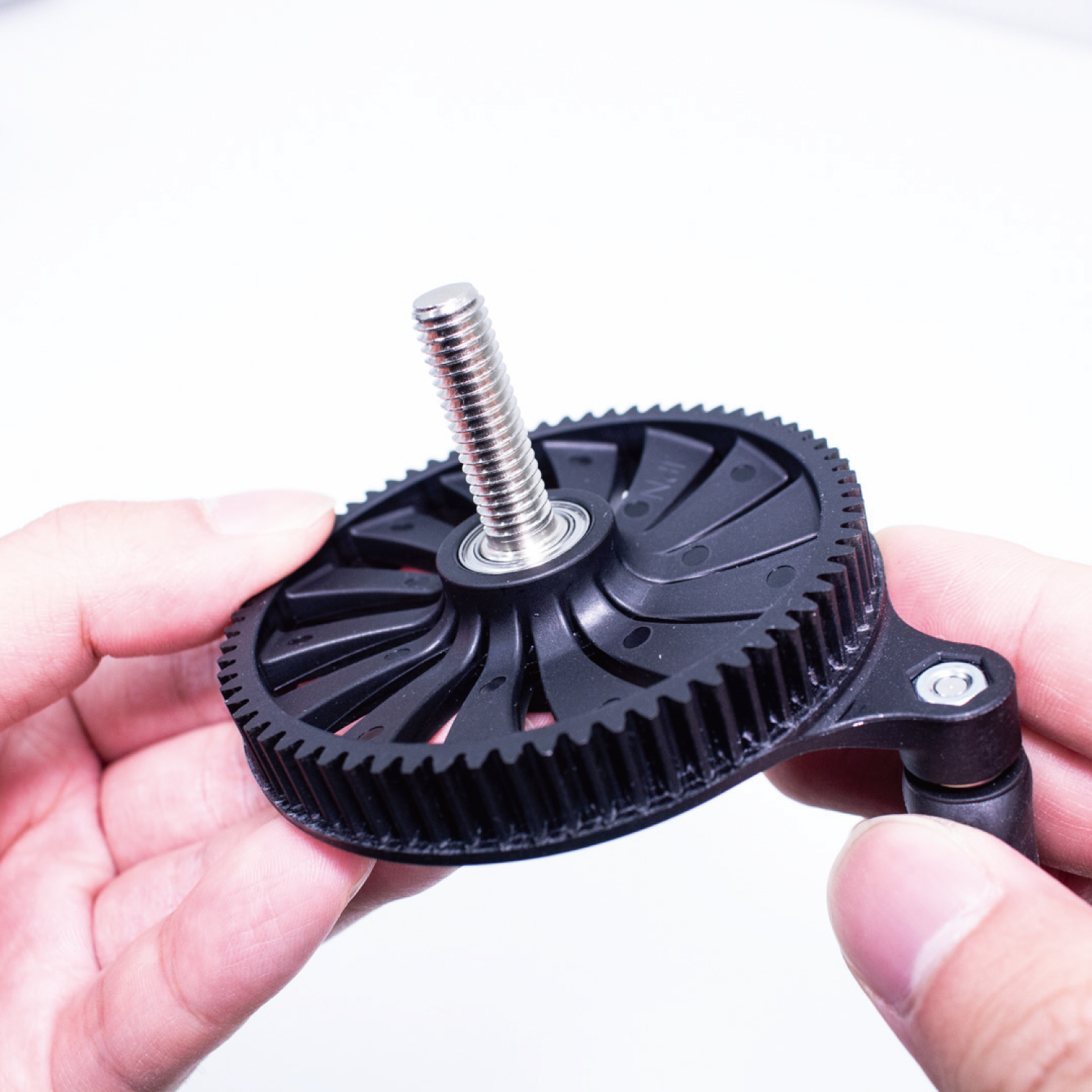

Attach the long center bolt to the handle gear of the Kousoku Recycler 2.0.

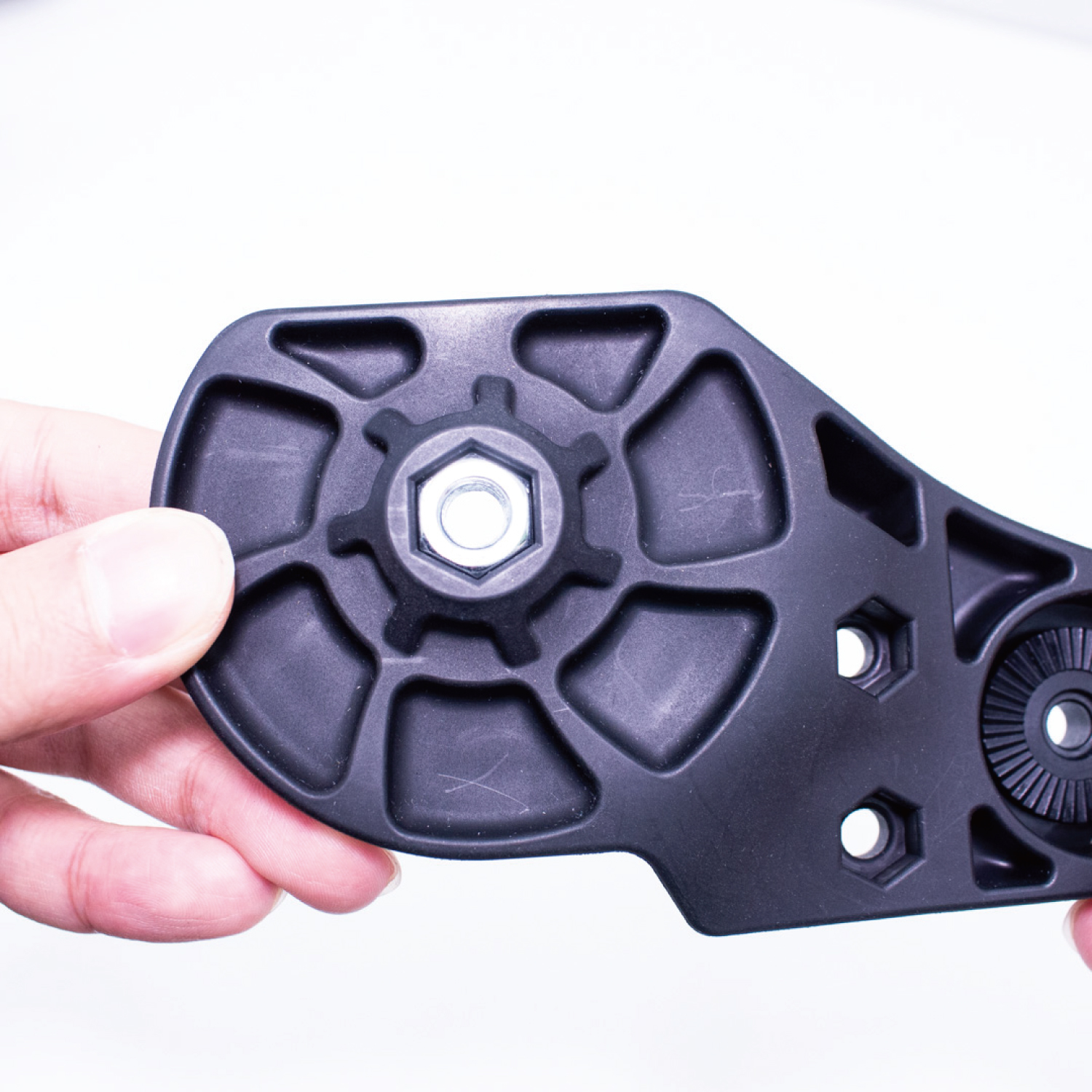

Attach the M8 nut removed in Assembly Step 1 to the main body.
How to assemble 3

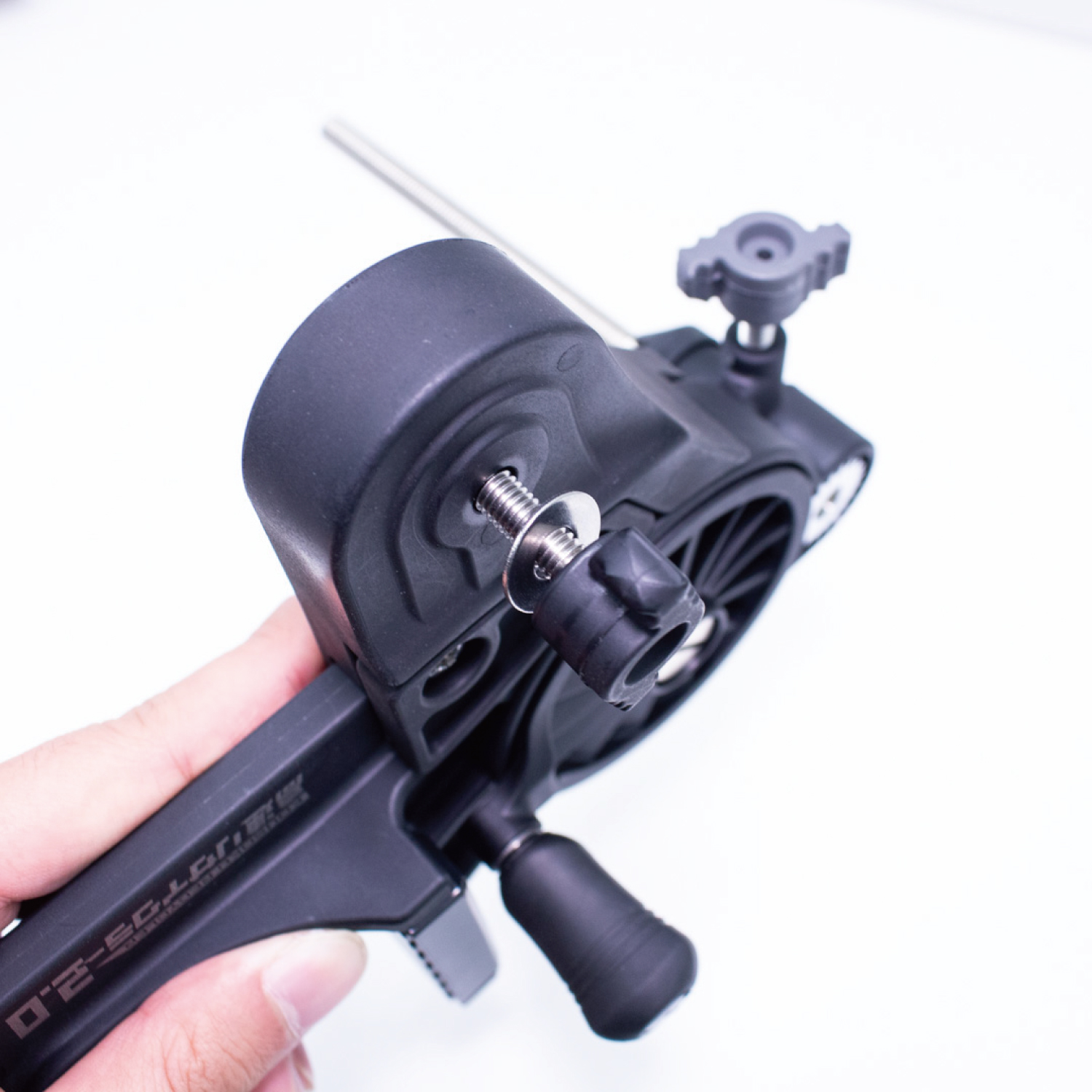

Insert the main body into the Kousoku Recycler 2.0 and tighten the long center bolt with the provided wrench to secure it.

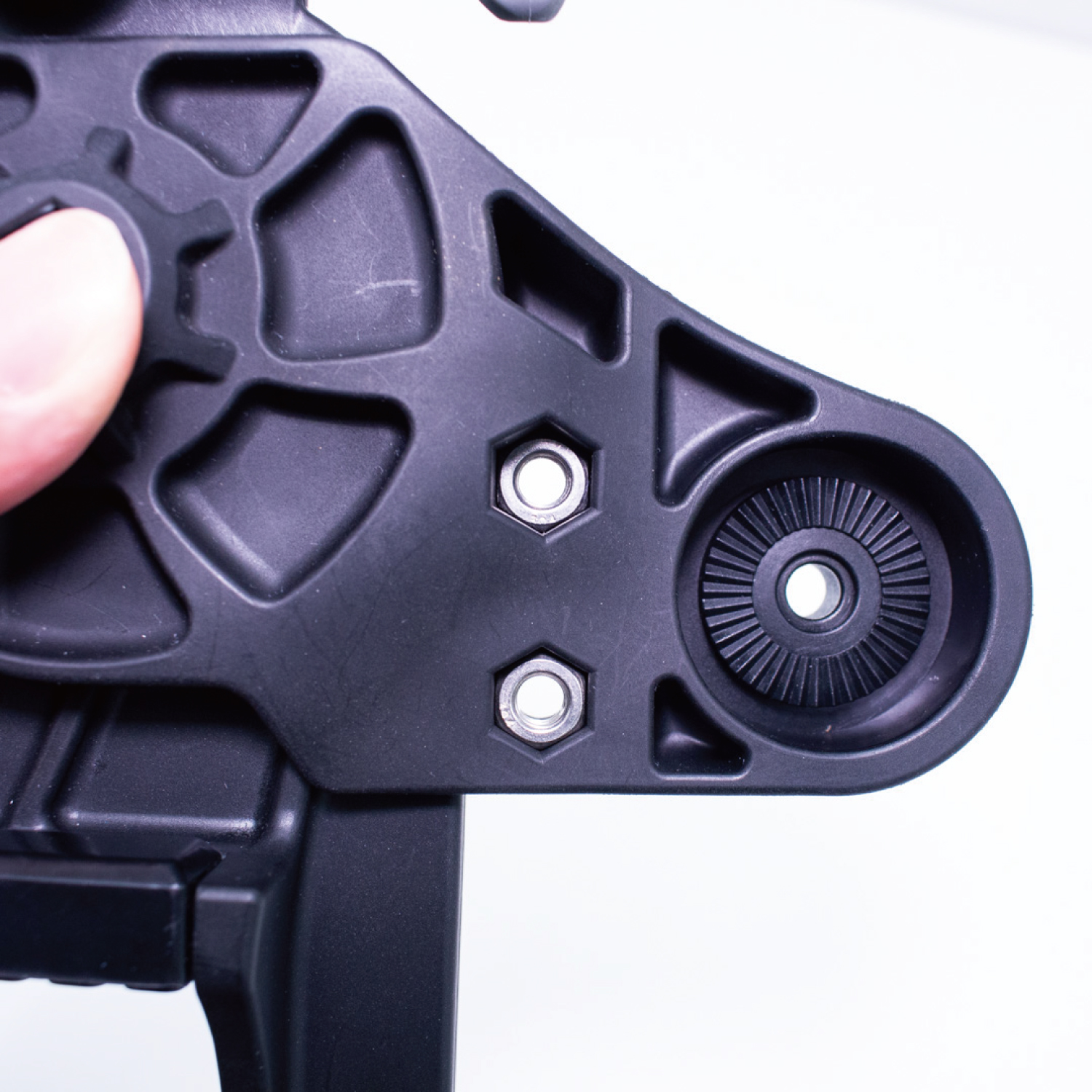

How to assemble 4

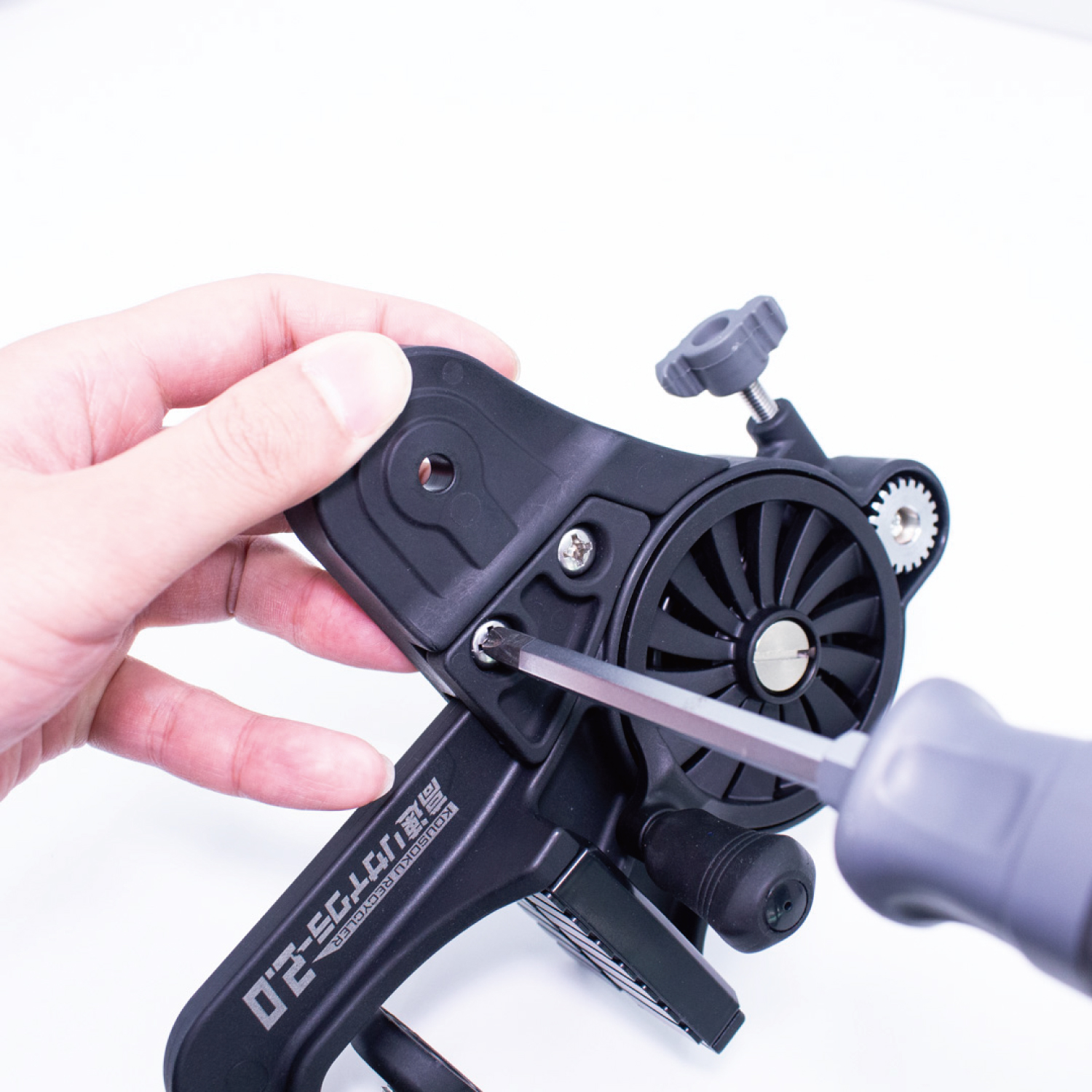

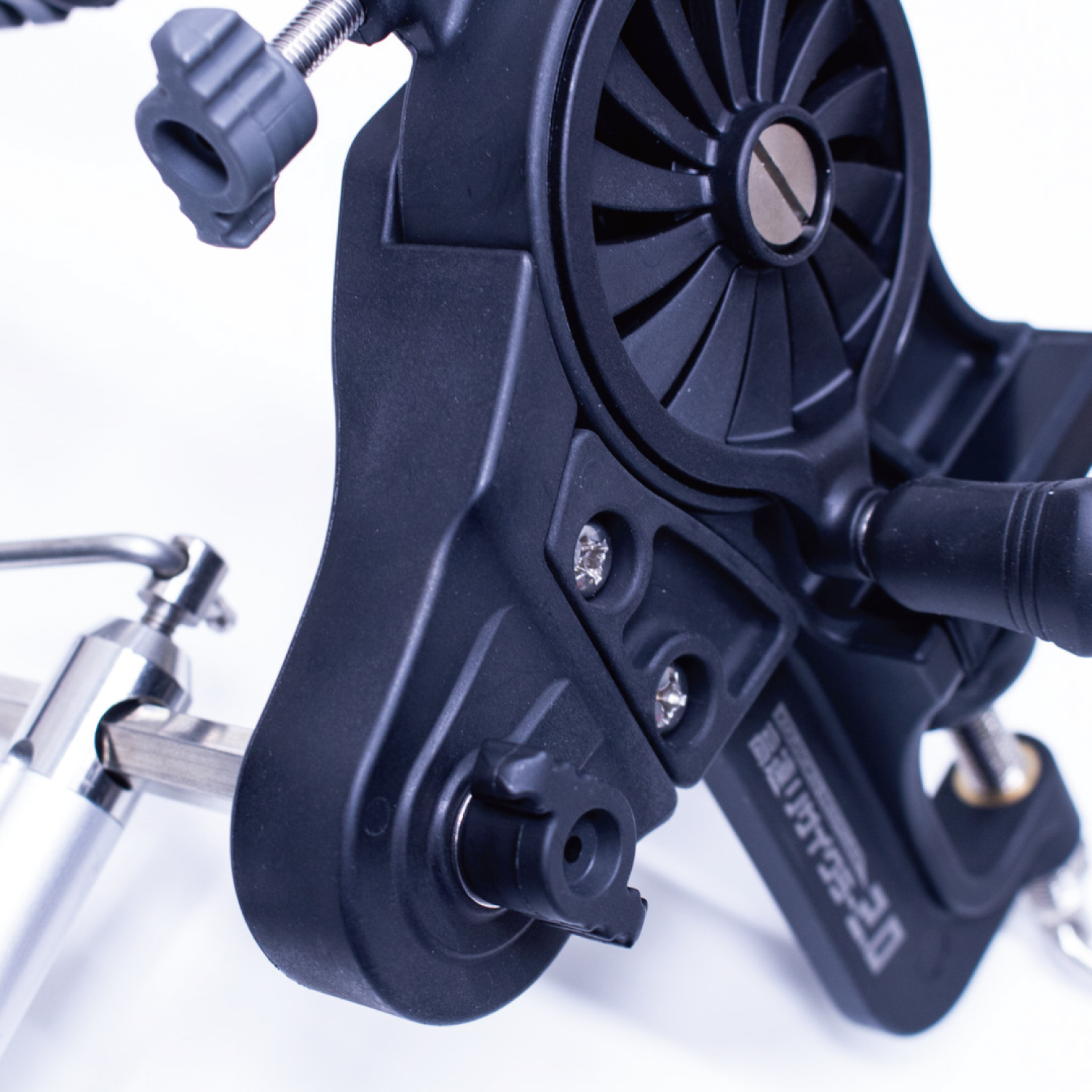

Insert two M6 nuts into the main body, attach the reinforcement plate using the Phillips screws, and tighten them with a Phillips screwdriver.
*A Phillips screwdriver must be prepared separately.

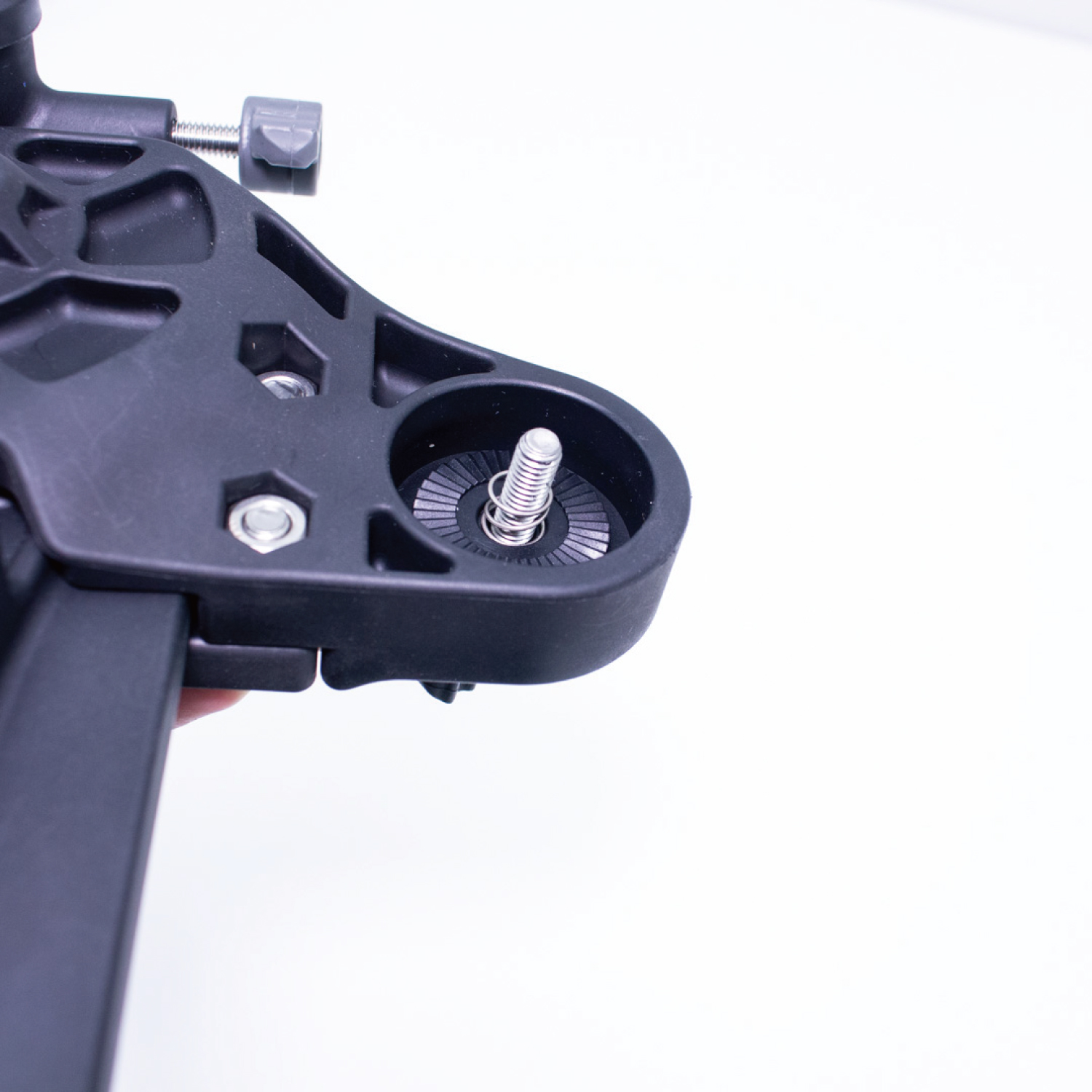

How to assemble 5
Insert the washer into the angle adjustment screw and attach it to the main body.
Set the spring from the opposite side of where the angle adjustment screw was inserted.

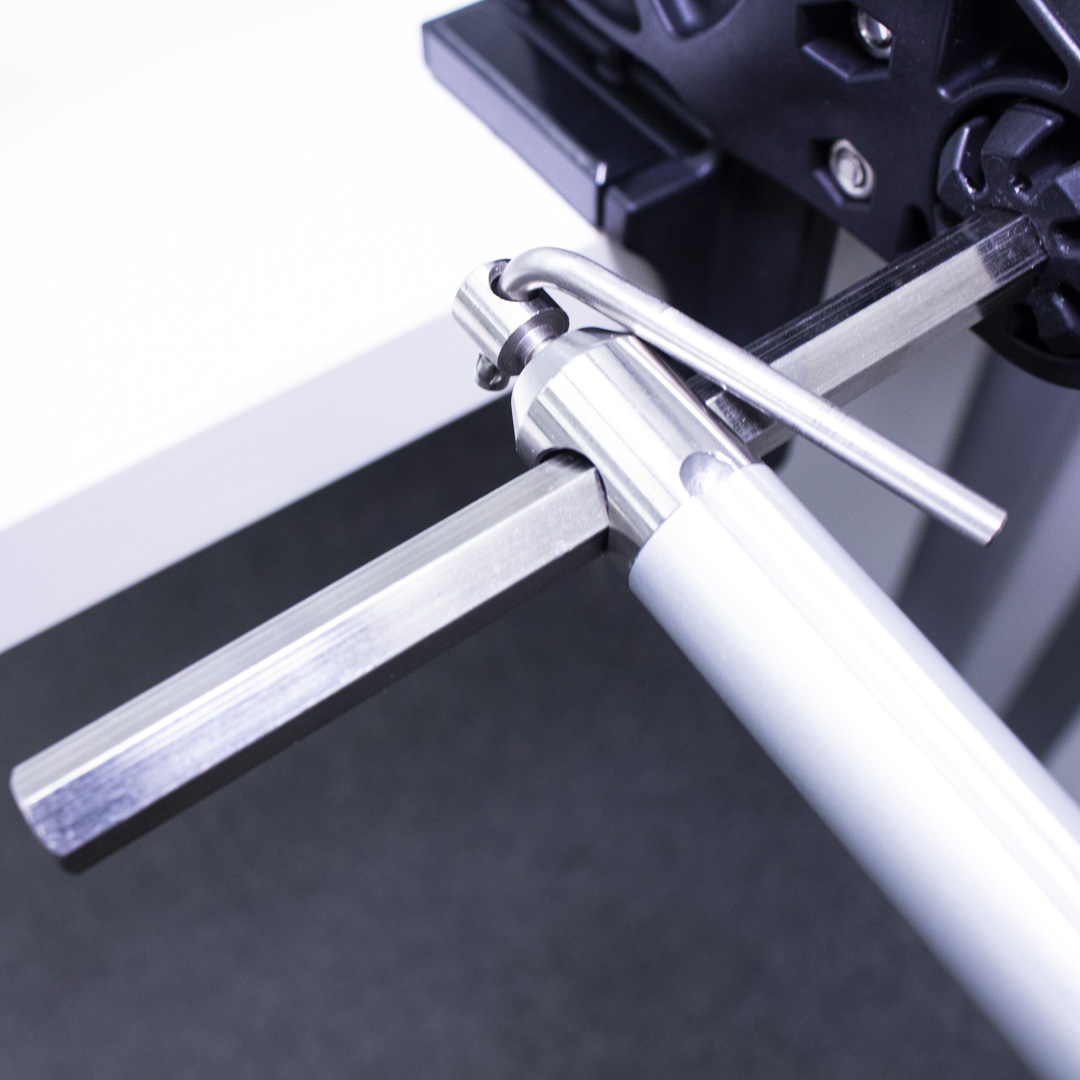

How to assemble 6

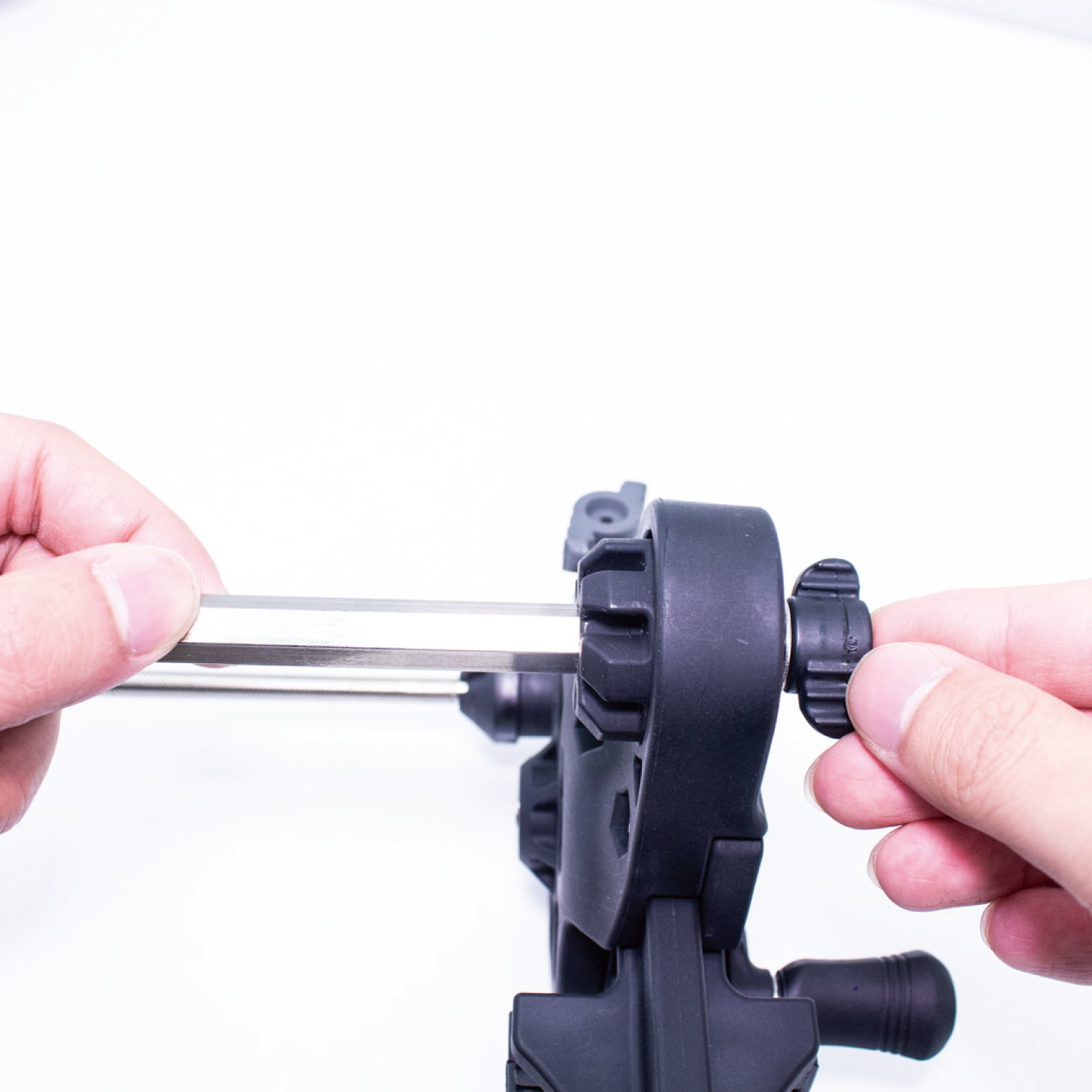

Attach the hexagonal shaft, tighten the angle adjustment screw, and secure it.

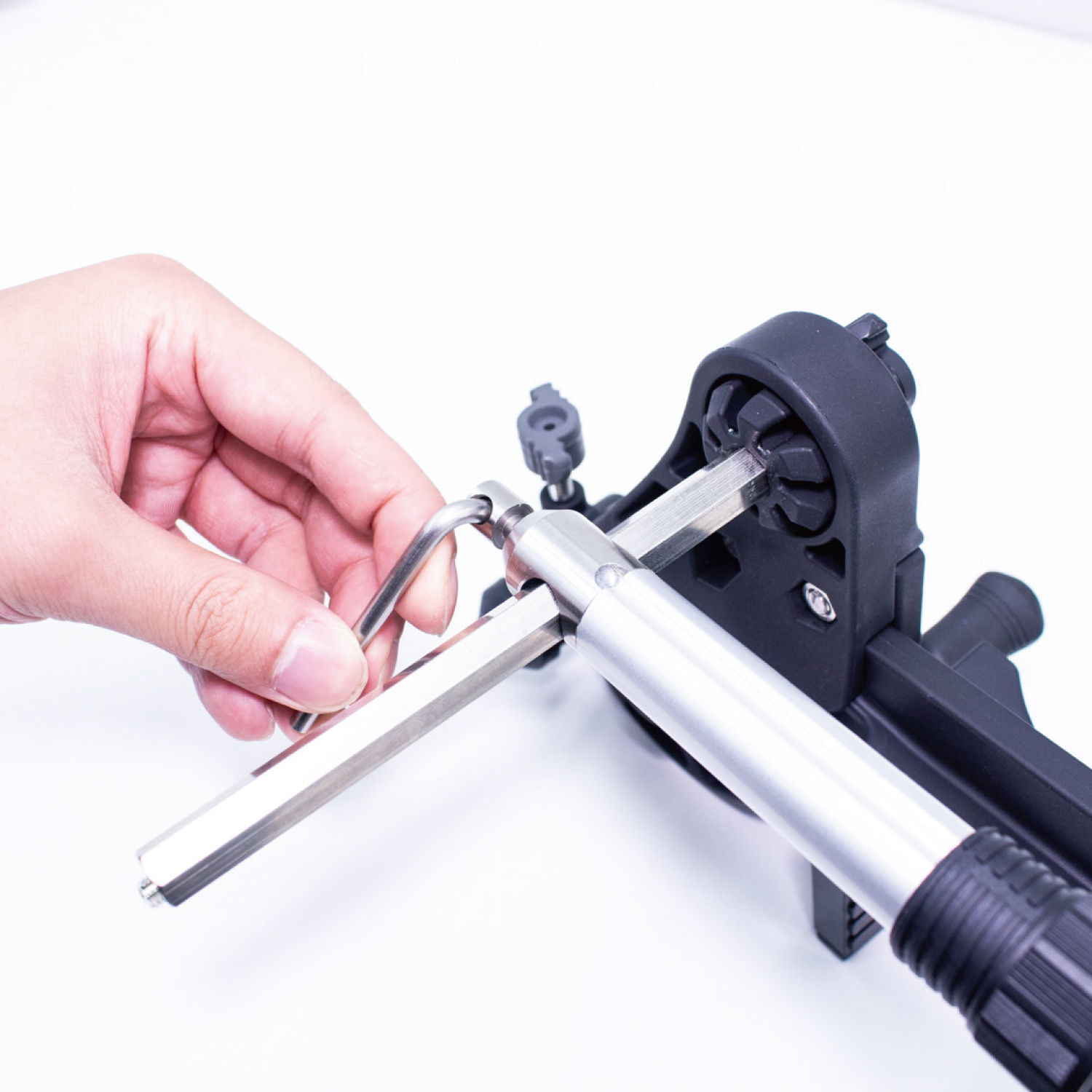

Insert the reel seat into the hexagonal shaft, tighten the handle screw, and fix the reel seat.
The assembly is now complete.
Usage 1

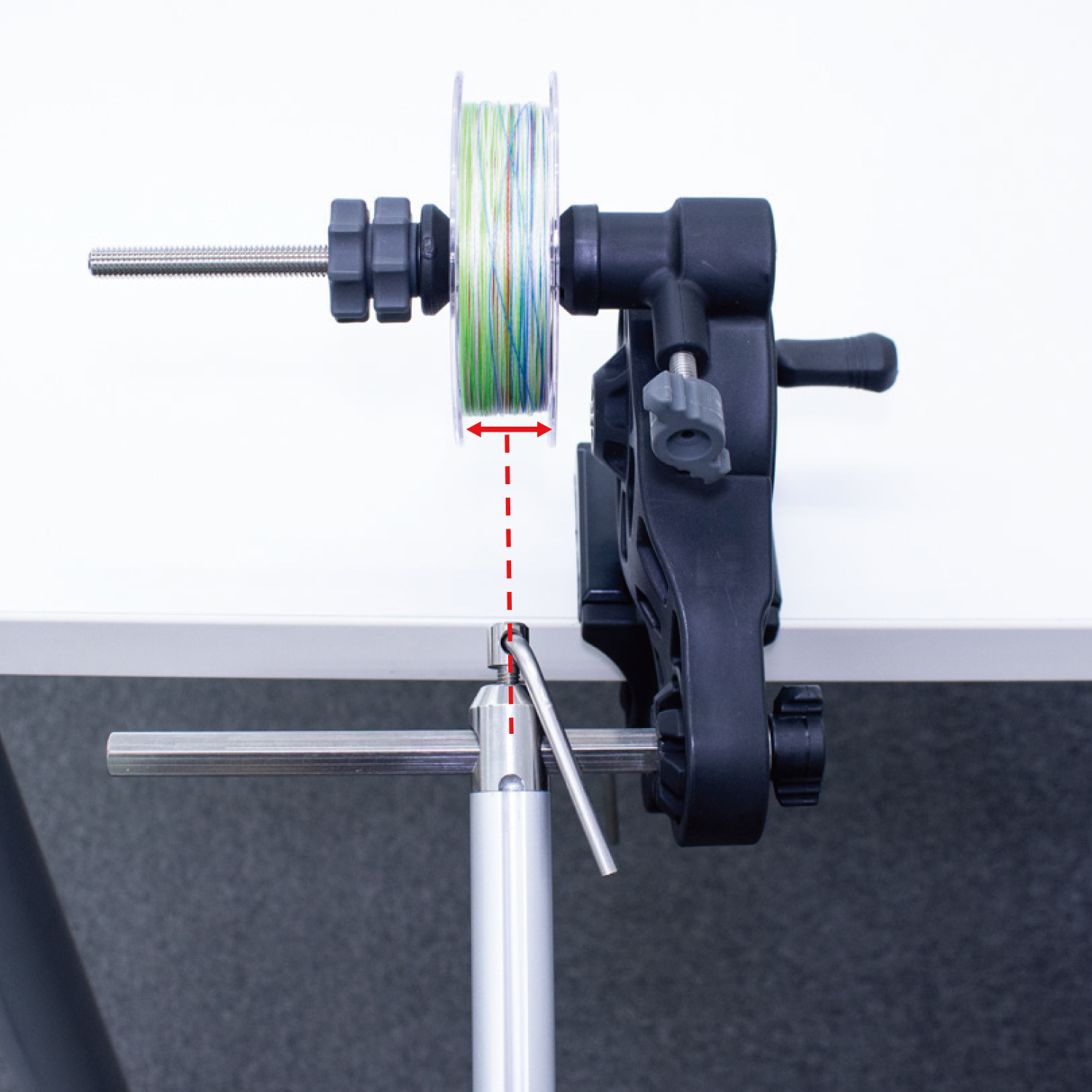

Attach the line spool to the Kousoku Recycler 2.0. Align the center of the reel seat with the center of the line spool width using the guideline, and fix the reel.
Usage 2

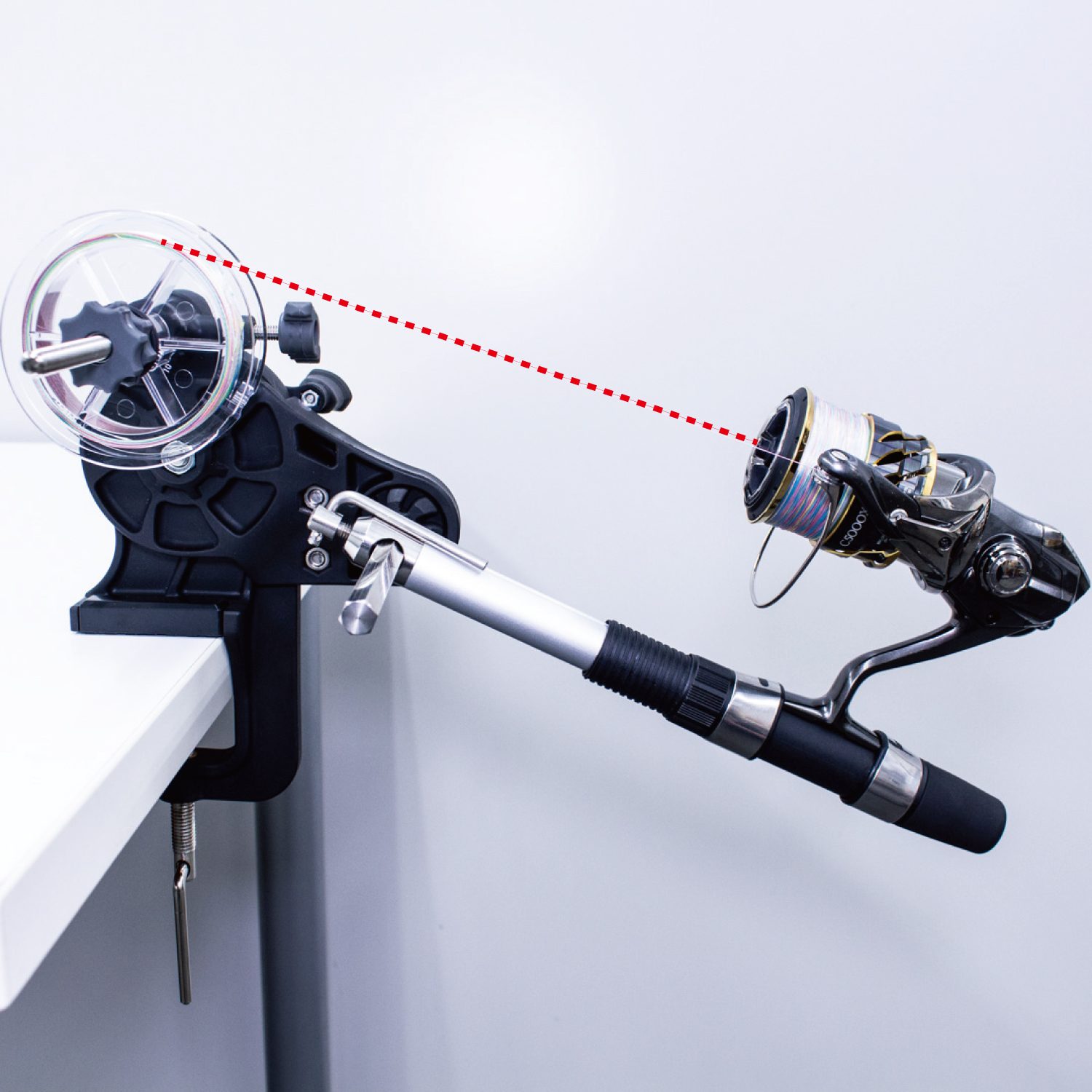

For spinning reels, adjust the reel seat angle so that the line’s exit point from the spool aligns with the center of the reel shaft.

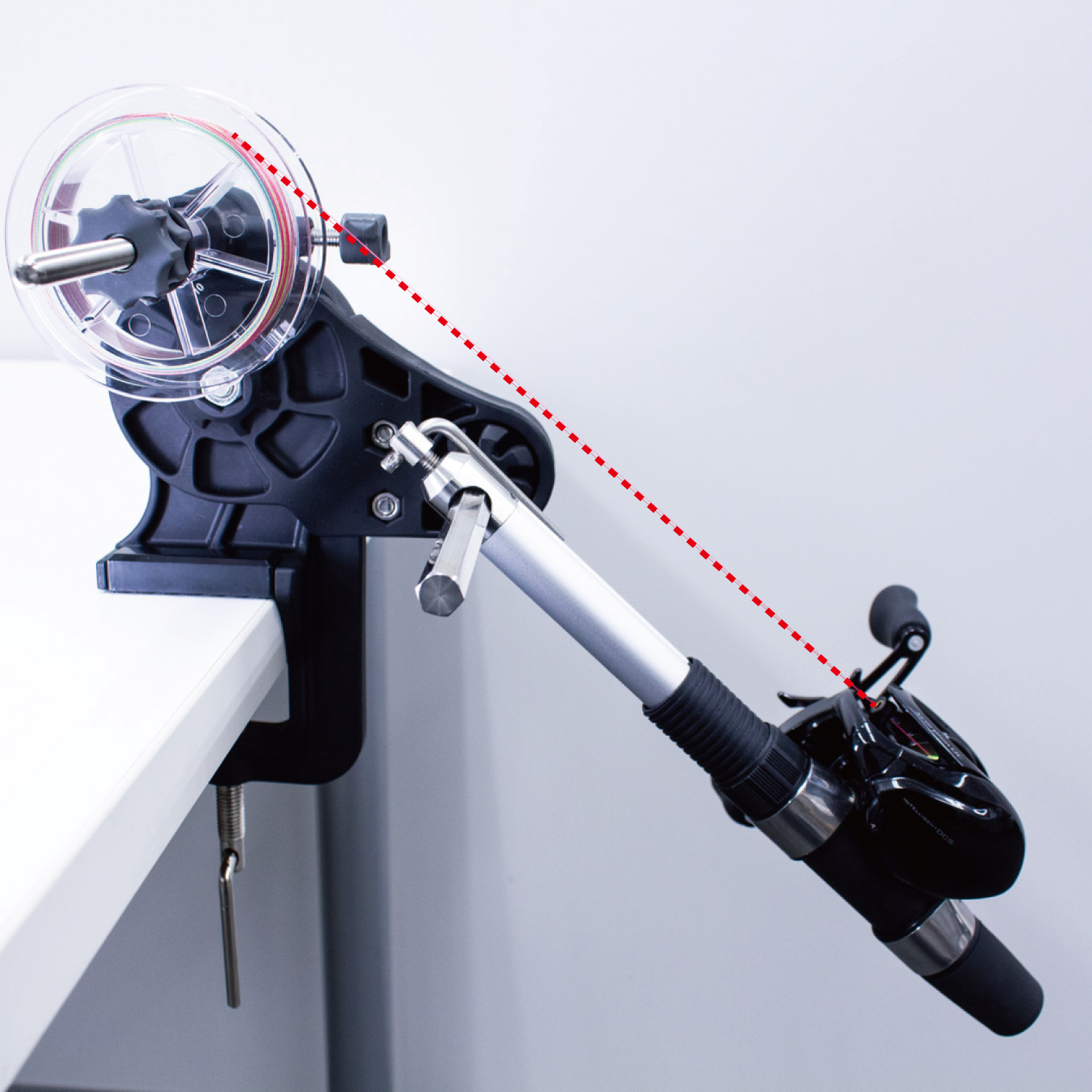

For baitcasting reels, adjust the reel seat angle to keep the level winder as parallel as possible to the line.
*When using spinning reels, the reel seat can also be installed upside down.

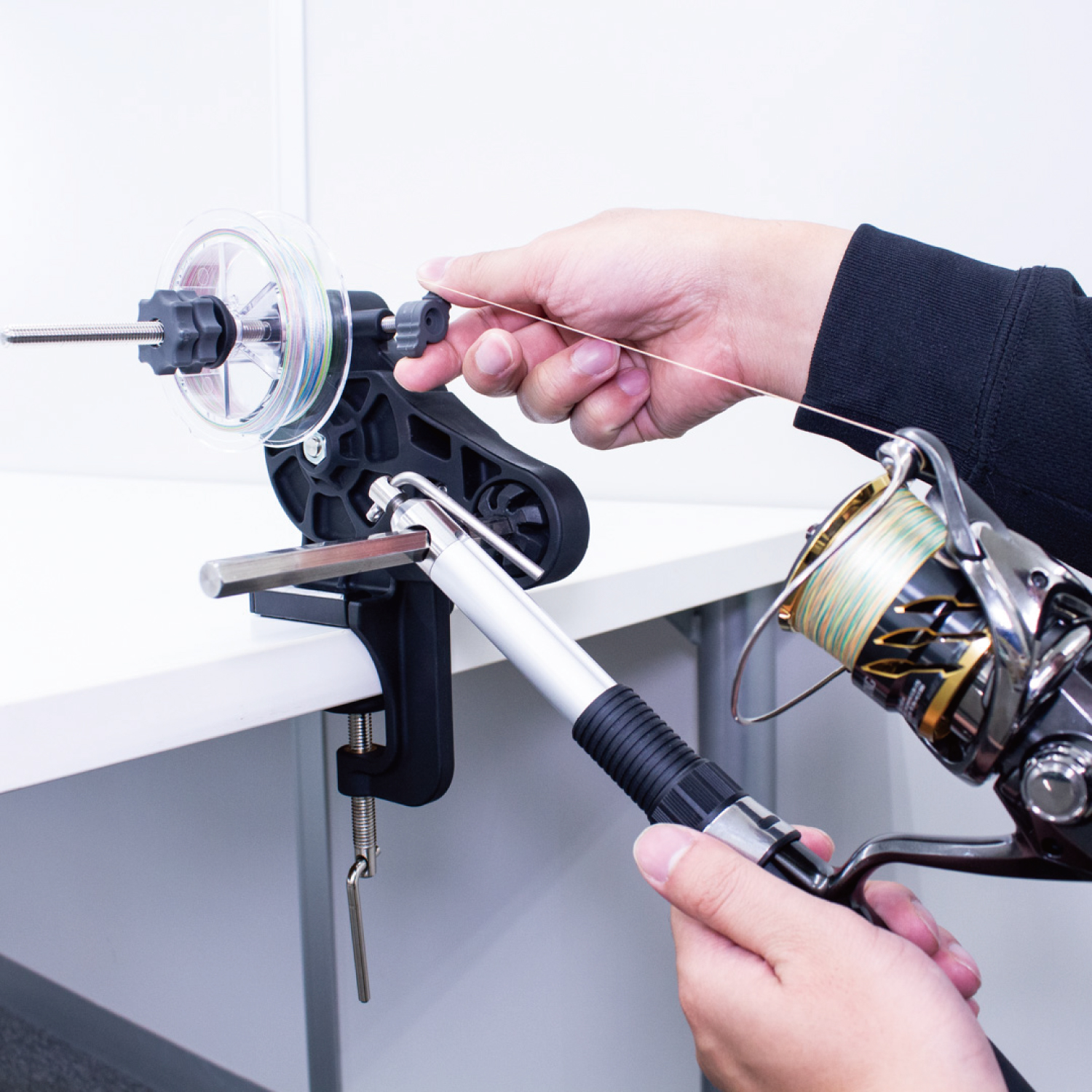

Usage 3

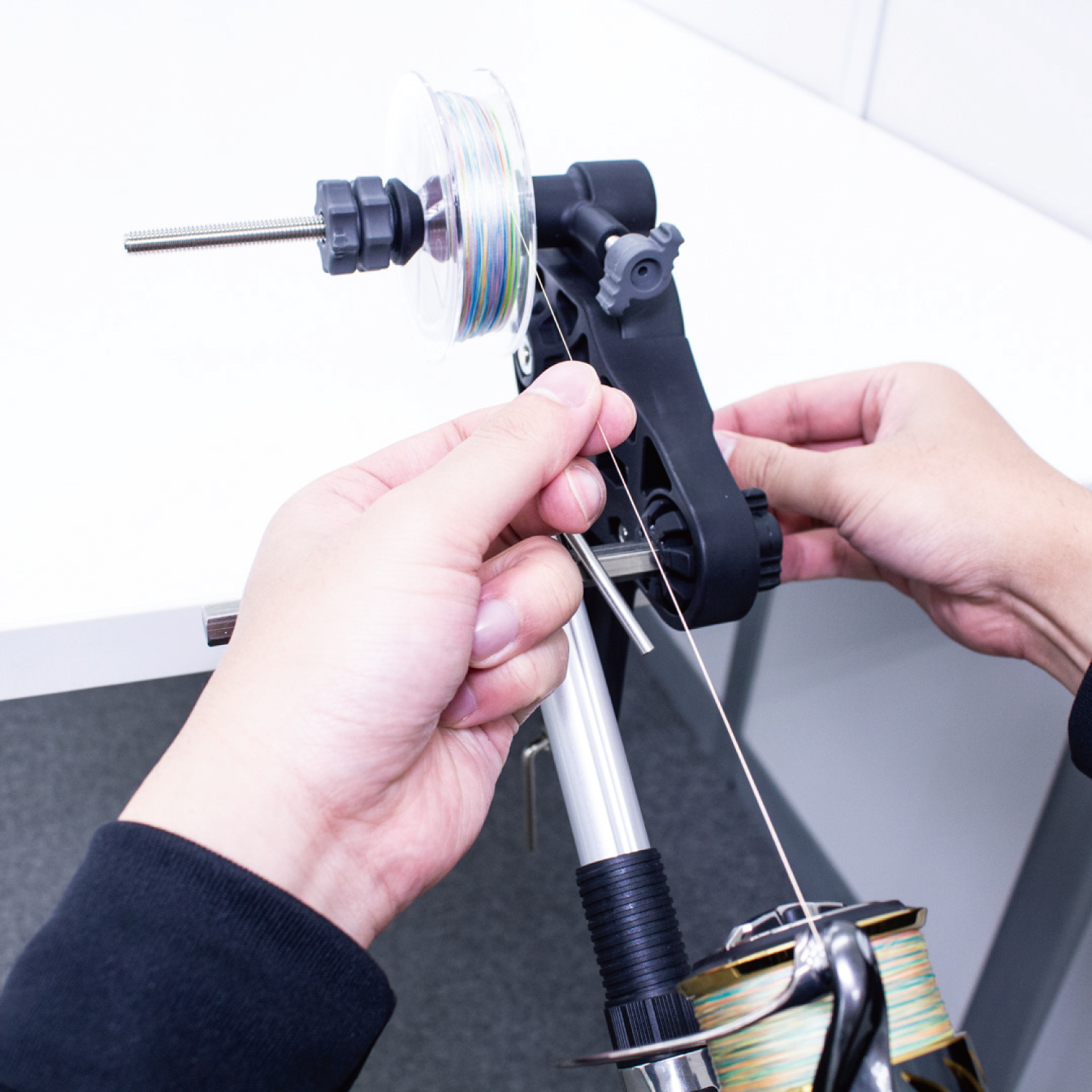

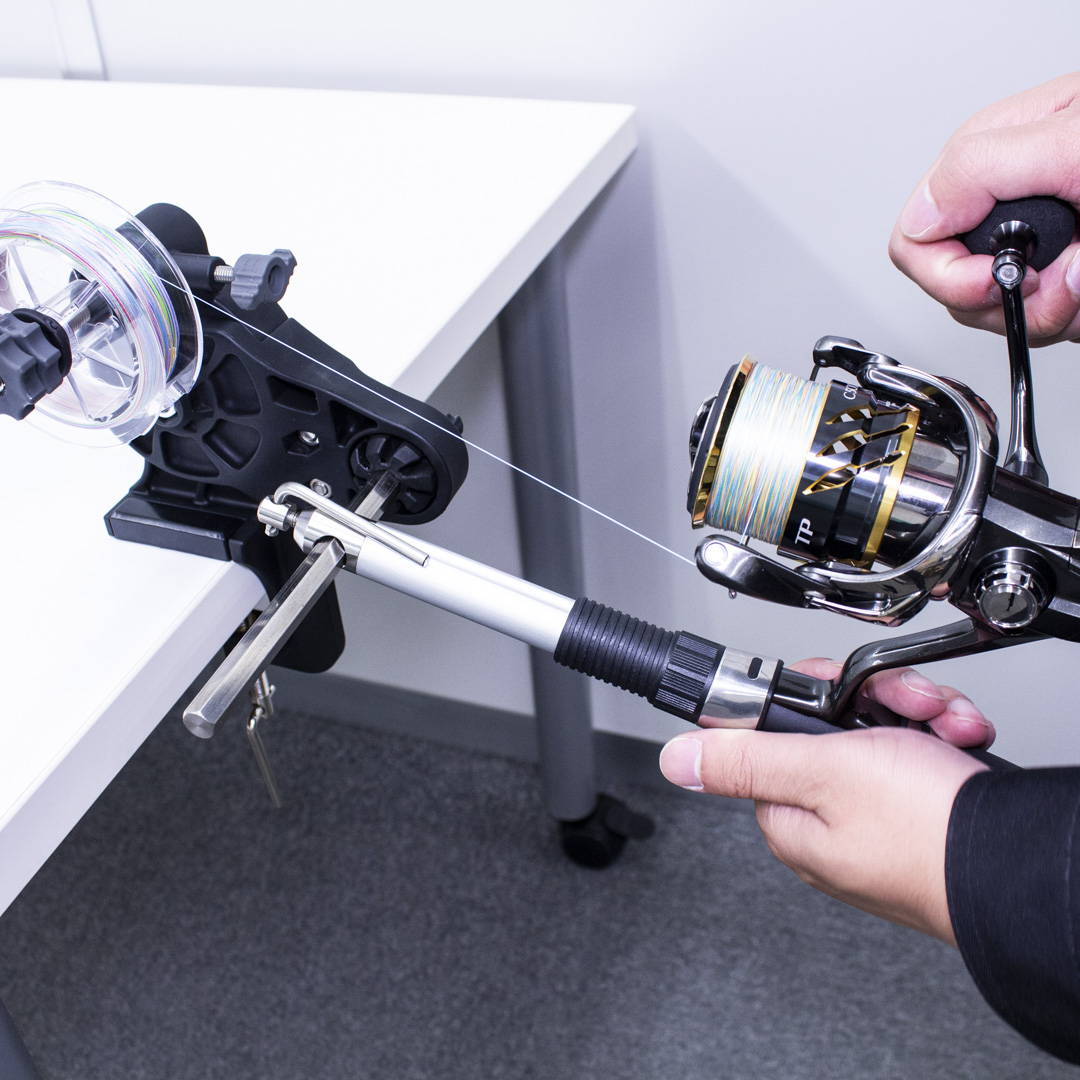

When winding, adjust the line tension of the Kousoku Recycler 2.0 and wind the line onto the reel.
When winding onto an empty spool, guide the line lightly to prevent it from slipping off.
Cautions
• Do not apply excessive force to the reel seat, as it may cause damage.
• The angle adjustment screw, handle screw, and reel seat may loosen due to vibration or operation.
Periodically check to ensure they are tightened.
• Improper adjustment of the reel seat’s position or angle may cause the line to rub excessively, come off the spool, or become damaged.
Always adjust the position and angle of the reel seat before winding the line.
• The hexagonal shaft may become scratched when attaching the reel seat, but this does not affect its functionality. Please be aware of this in advance.
• The farther the reel seat is positioned outward, the lower its rigidity becomes.
For line winding and rewinding, use the area closer to the main body of the hexagonal shaft whenever possible.
• Do not overtighten the reel seat using tools or other equipment.
Excessive force on the reel foot may cause scratches, damage, or breakage.
• For detailed information on purchasing parts, please refer to the “Parts & Repairs” section on our website.
3D view
Drag the mouse sideways on the image to rotate the image.
Drag the mouse sideways on the image to rotate the image.
